PlayStar Premium Frame Floating Dock Kit w/Resin Top 4'x10'

🛠️ Product Overview

The PlayStar Premium Frame Floating Dock delivers professional-grade performance with elegant design and unmatched durability. Built with a heavy-duty aluminum frame surrounded by impact-resistant resin sidewalls, this dock combines strength, function, and beauty—perfect for deep water, muddy bottoms, or fluctuating lake levels.

Each floating section features marine-grade HDPE floats that provide 500 lbs of buoyancy each, allowing the dock to self-adjust with changing water levels while maintaining stability and balance. The resin decking offers a slip-resistant, low-maintenance surface that stays cool to the touch and looks great season after season.

Lightweight yet strong, each 4' x 10' section weighs under 200 lbs and supports over 1,500 lbs of weight capacity. Whether used alone or connected with additional sections for custom layouts, the Premium Floating Dock is the pinnacle of performance for residential and commercial waterfronts — all backed by a Lifetime Manufacturer Warranty.

⭐ Key Features

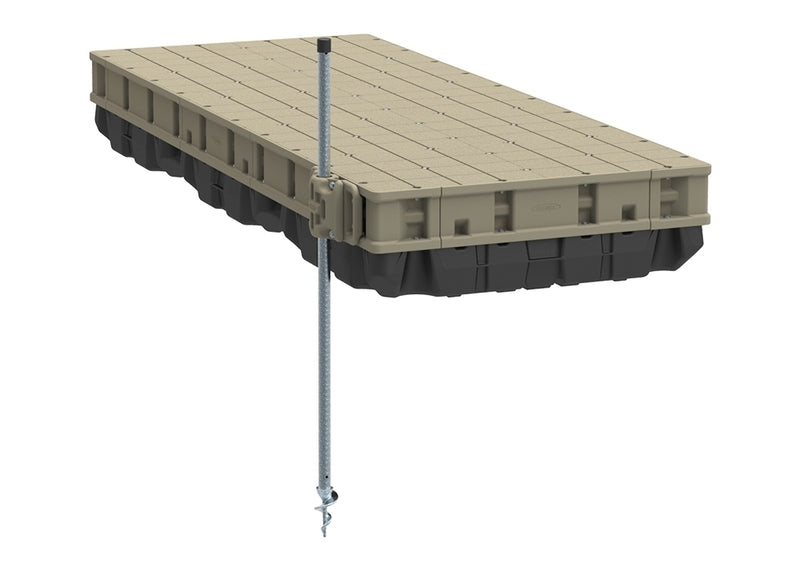

• 4' x 10' floating dock section with premium resin decking and aluminum frame

• Self-adjusting design automatically adapts to water level changes

• 30% more aluminum than standard frames for superior strength and rigidity

• Resin sidewalls offer integrated bumper protection for boats and docks

• Marine-grade HDPE floats provide excellent buoyancy (1,500+ lb total support)

• Ideal for deep water, mud bottoms, or difficult shore access

• Lightweight modular design — under 200 lbs per section for easy handling

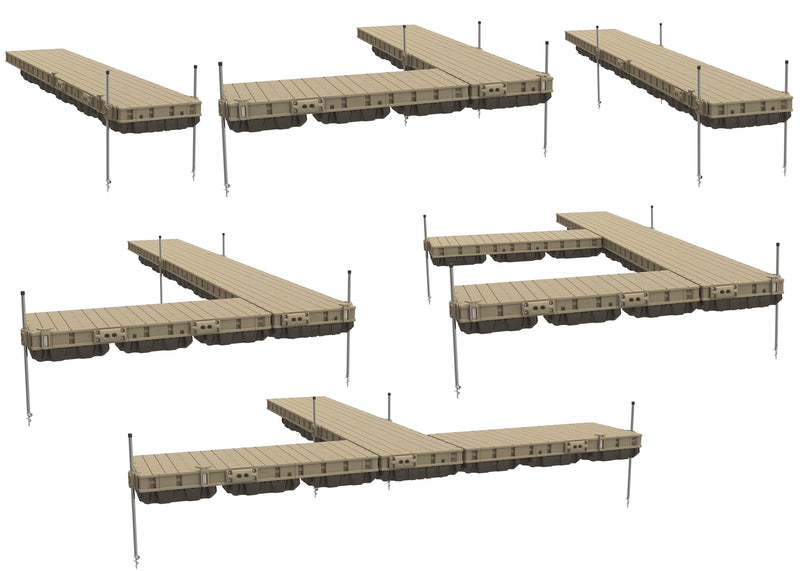

• Expandable system supports unlimited configurations (L-, T-, or straight-shaped layouts)

• Slip-resistant resin top stays cool, durable, and low-maintenance

• Lifetime Manufacturer Warranty

⚙️ Specifications

• Model Numbers: KT 13223 (Build It Yourself), PS 23223 (Pre-Built)

• Dimensions: 4 ft x 10 ft per section

• Frame Material: Heavy-duty aluminum with resin sidewalls

• Decking Material: Weather-resistant resin top (PS 1320)

• Float Material: 100% Virgin Grade HDPE (freeze/thaw stable)

• Float Buoyancy: 500 lbs each, total over 1,500 lbs per section

• Weight per Section: Less than 200 lbs

• Connection Type: Hinge system for modular expansion

• Ideal Environment: Freshwater lakes, rivers, or ponds

• Warranty: Lifetime Manufacturer Warranty

💪 Why Choose the PlayStar Premium Floating Dock?

• Ultimate Strength & Stability: Contains 30% more aluminum and reinforced stringers for maximum support.

• Integrated Protection: Resin sidewalls act as durable, built-in bumpers against impact.

• Adapts to Nature: Automatically levels with changing water depths—no seasonal adjustments needed.

• Low Maintenance: Aluminum and resin components resist rust, corrosion, rot, and fading.

• Lightweight Handling: Each dock section is easy to transport and install without heavy machinery.

• Expandable Flexibility: Connect sections to design the perfect layout for your waterfront.

• Eco-Friendly Design: HDPE floats contain no harmful fillers and are safe for all water ecosystems.

• Peace of Mind: Covered by PlayStar’s industry-leading Lifetime Warranty.

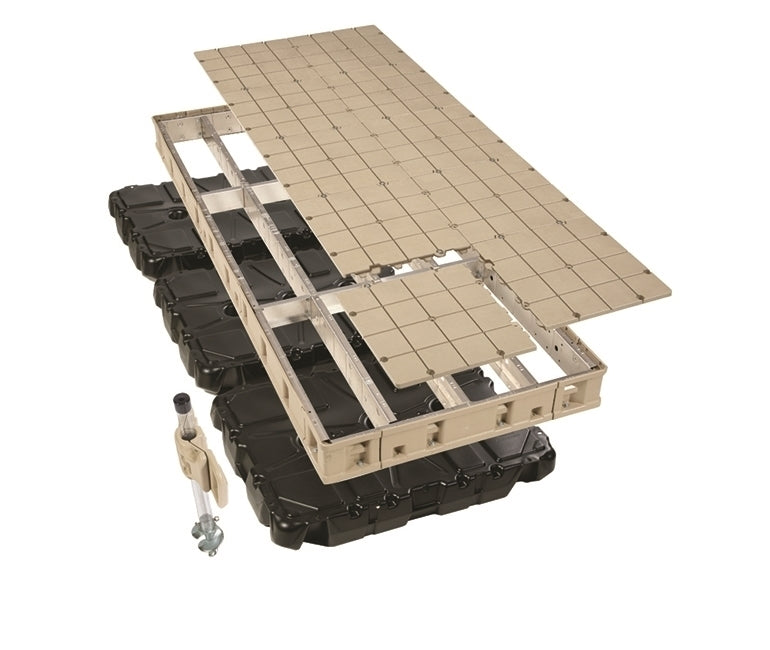

📦 What’s Included

• Premium Dock Frame Kit (PS 1322)

• Resin Dock Top (PS 1320)

• Marine Dock Float (PS 1155)

• Commercial Grade Dock Auger (PS 1100)

• Premium Dock Hinge Components (KT 46260)

• Premium Pipe Sleeve/Bumper (PS 1350)

• Premium Dock Accessory Brackets (PS 1348)

• Pipe Safety Caps (PS 1193)

• All Required Hardware & Assembly Instructions

Additional Materials (Purchased Separately):

• Dock Pipe (length determined by water depth; approx. $25 additional cost)

🧰 Tools Required (for DIY Assembly)

• Safety Glasses & Gloves

• Measuring Tape

• Saw Horses

• 9/16" & 1" Socket & Ratchet

• 9/16" Combination Wrench

• Drill with 2" Hole Saw (Not Needed for Pre-Built)

• Phillips Head Screwdriver (for hole alignment; not needed for Pre-Built)

🛡️ Warranty & Support

Built for performance and endurance, the PlayStar Premium Floating Dock resists corrosion, impact, and UV damage for a lifetime of dependable use. Designed to withstand the challenges of changing water levels and heavy use, it is backed by a Lifetime Manufacturer Warranty, ensuring years of worry-free waterfront enjoyment.
