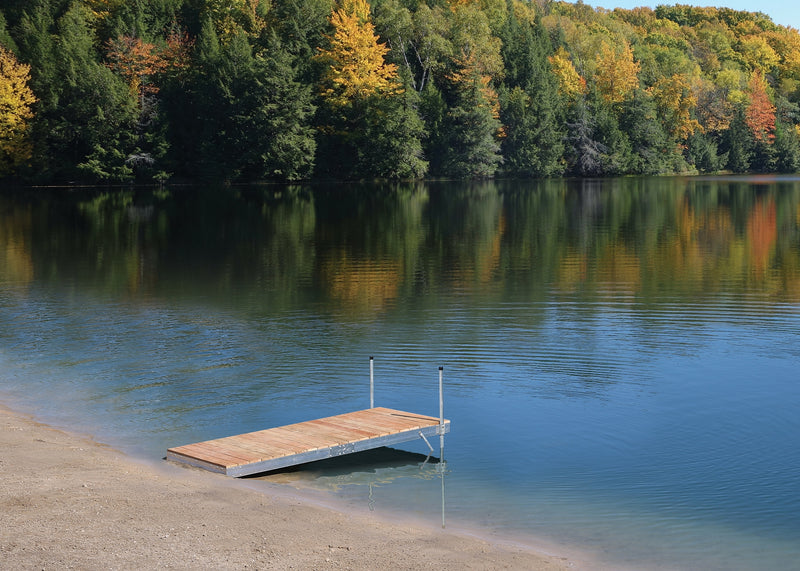

PlayStar Aluminum Roll-In Dock – 4' x 10'

🛠️ Product Overview

The PlayStar Aluminum Roll-In Dock combines strength, versatility, and convenience in one lightweight system—perfect for smooth or gradually sloping lake bottoms. Built with a tempered aluminum alloy frame, this dock is engineered for durability while remaining easy to maneuver and install.

Each modular 4' x 10' section weighs less than 200 lbs yet supports an impressive 1,500 lbs of weight. The roll-in design allows for effortless seasonal installation and removal, while dock wheels make positioning smooth and simple without ever needing to step into the water.

Choose your preferred decking—cedar, treated wood, or composite materials like Trex—to create a dock that matches your waterfront’s style and performance needs. Expandable, durable, and backed by a 15-Year Manufacturer Warranty, the PlayStar Aluminum Roll-In Dock is designed for years of carefree enjoyment.

⭐ Key Features

• Tempered aluminum alloy frame for unmatched strength and corrosion resistance

• Roll-in design allows for easy seasonal installation and removal

• Lightweight modular sections—each under 200 lbs for effortless handling

• Supports up to 1,500 lbs per 4' x 10' section

• Customizable decking options—use cedar, treated lumber, or composite

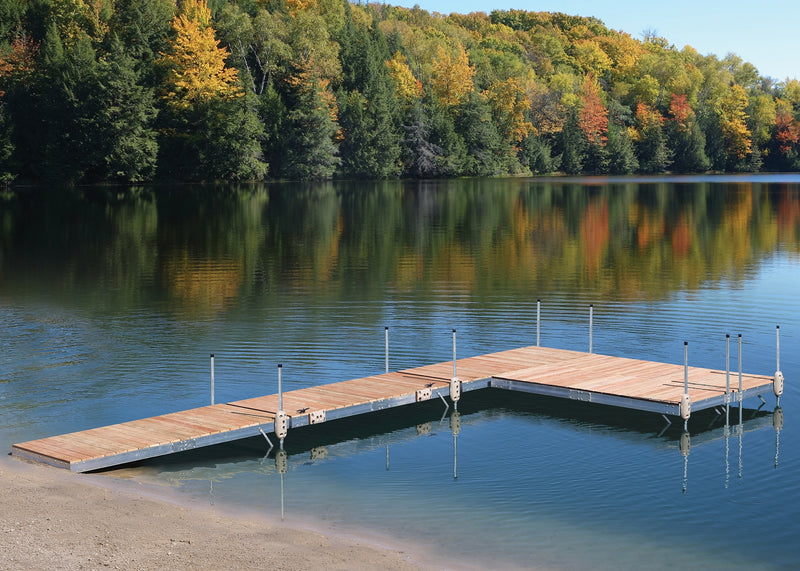

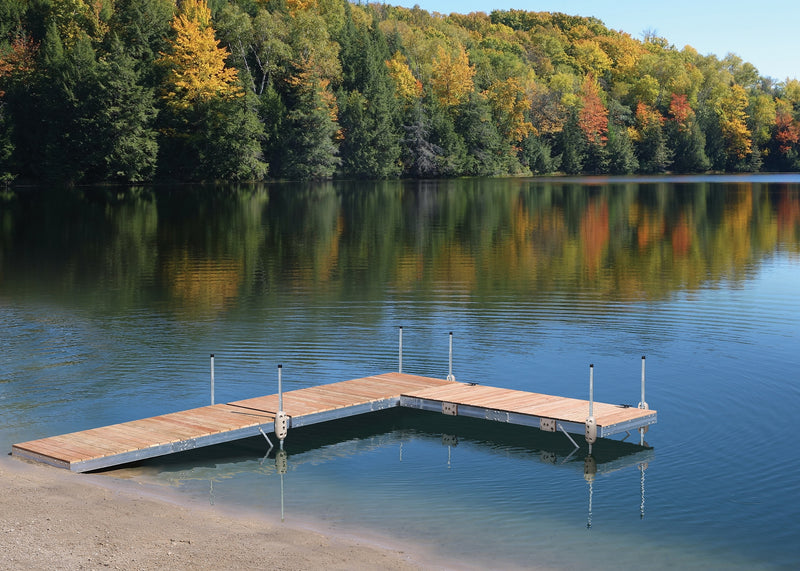

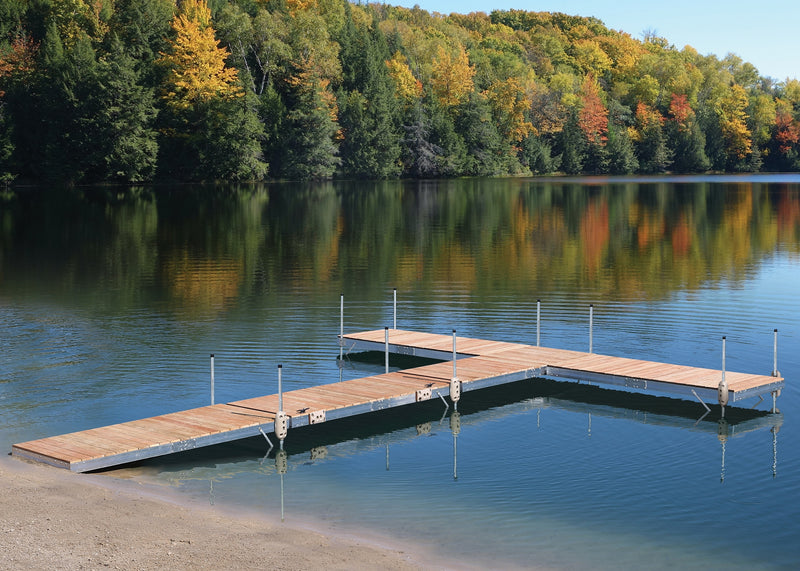

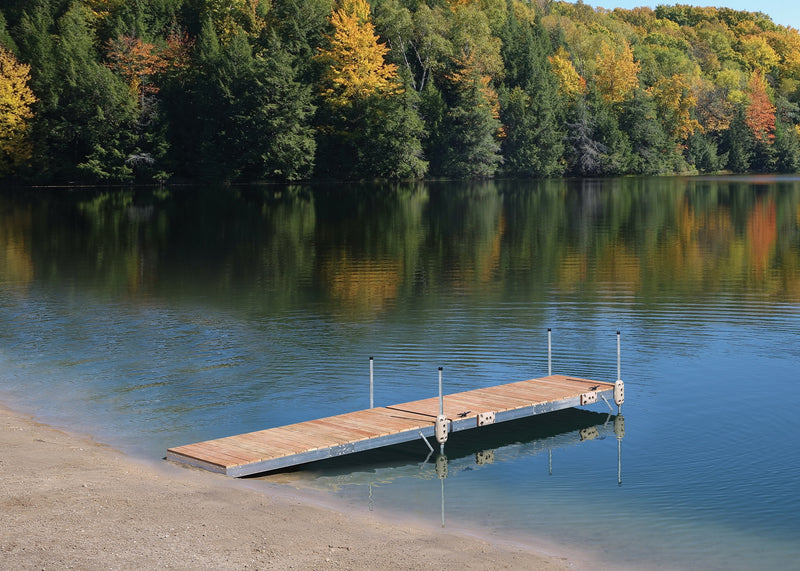

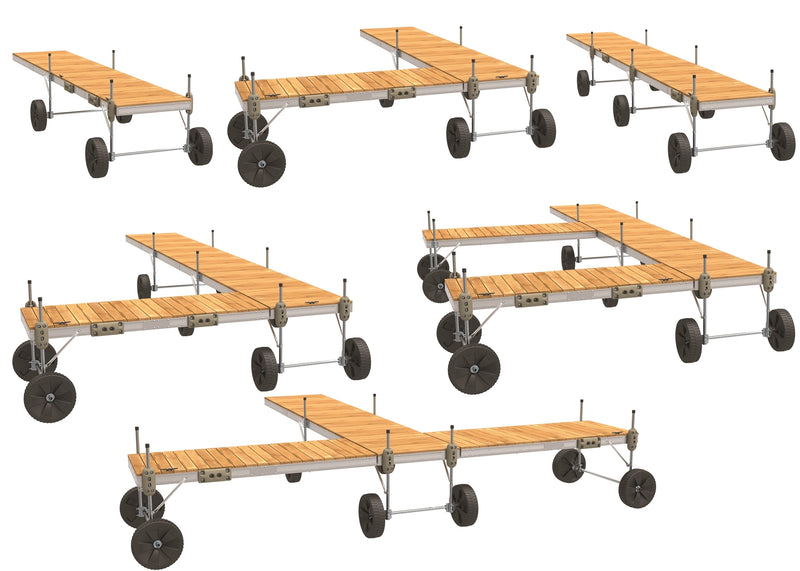

• Expandable system—connect sections to create 8' x 10', “T”, or “L” configurations

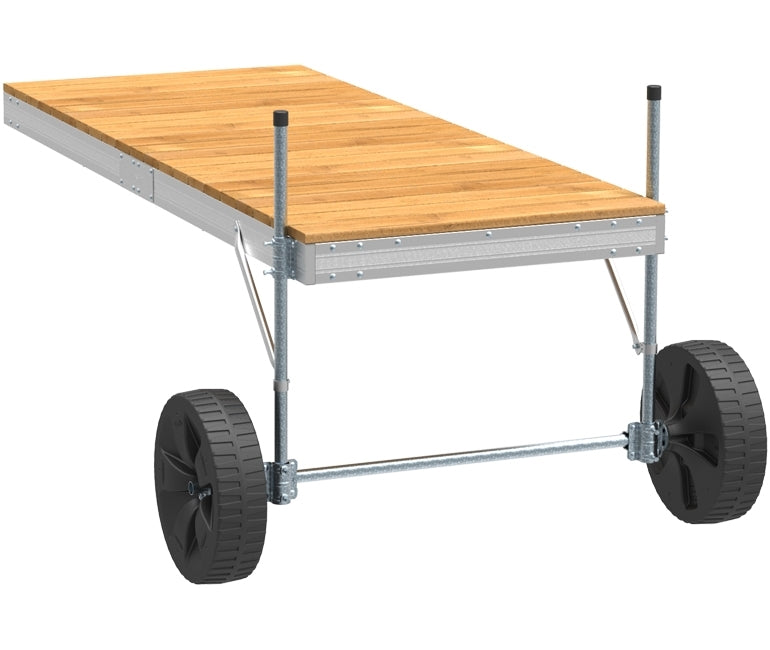

• Dock wheels included for smooth shoreline transitions

• Maintenance-free frame—rust-proof, rot-proof, and weather-resistant

• Ideal for smooth or gently sloped lake bottoms

• 15-Year Manufacturer Warranty for long-term peace of mind

⚙️ Specifications

• Model Numbers: KT 15055 (Build It Yourself), PS 25055 (Pre-Built)

• Dimensions: 4 ft x 10 ft per section

• Frame Material: Tempered aluminum alloy

• Decking: User-provided (cedar, treated, or composite)

• Weight Capacity: 1,500 lbs per section

• Section Weight: <200 lbs

• Connection Type: Dock Connector Clips (PS 1021)

• Wheel Kit: Included (PS 1334, PS 1198)

• Pipe & Decking: Purchased separately (pipe length depends on water depth; decking approx. $250)

• Warranty: 15-Year Manufacturer Warranty

💪 Why Choose the PlayStar Aluminum Roll-In Dock?

• Effortless Mobility: Built-in dock wheels make moving and installing your dock quick and simple.

• Lightweight Strength: Tempered aluminum frame ensures maximum strength without unnecessary weight.

• Custom Decking Options: Choose any decking material rated for outdoor use—wood or composite.

• Adaptable Design: Connect multiple dock sections with PlayStar Connector Clips for flexible layouts.

• Low Maintenance: Aluminum won’t rust or rot—perfect for long-term use in freshwater environments.

• DIY or Pre-Built: Available as a kit or factory-built model to match your installation preference.

• Peace of Mind: Backed by PlayStar’s industry-leading 15-Year Warranty.

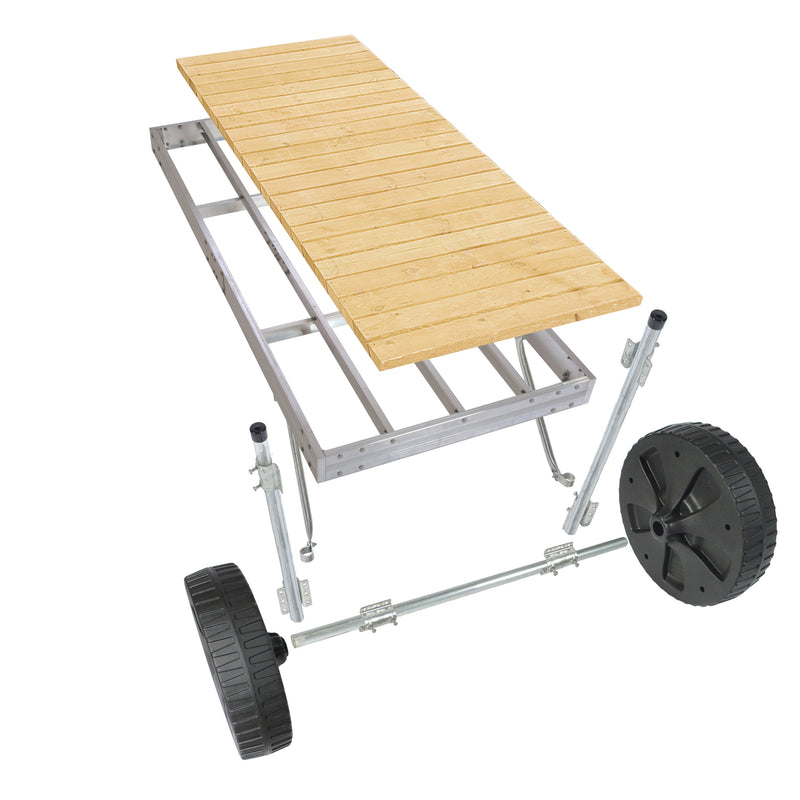

📦 What’s Included

• Aluminum Dock Frame Kit (PS 1505)

• Dock Wheel (PS 1334)

• Dock Axle Kit (PS 1198)

• Commercial Grade Pipe Sleeve (PS 1080)

• Commercial Grade Dock Connector Clip (PS 1021)

• Pipe Safety Caps (PS 1193)

• Assembly Hardware & Instructions

Additional Materials (Purchased Separately):

• Decking: Cedar, treated wood, or composite (approx. $250)

• Dock Pipe: Length determined by water depth

🧰 Tools Required (for DIY Assembly)

• Safety Glasses & Gloves

• Measuring Tape

• Pencil

• Saw Horses (not needed for pre-built)

• 7/16", 3/8", and 9/16" Socket & Ratchet

• Matching Wrenches

• Drill with 1/8", 1/4", and 3/8" Bits (may not be needed for pre-built)

• #2 Phillips Screwdriver

• Carpenter’s Square (not needed for pre-built)

🛡️ Warranty & Support

The PlayStar Aluminum Roll-In Dock is designed for long-term use in freshwater environments. Its corrosion-resistant aluminum construction and robust design provide excellent durability while remaining easy to handle.

Enjoy your waterfront season after season with confidence—PlayStar backs this dock with a 15-Year Manufacturer Warranty, ensuring quality, safety, and performance for years to come.
