PlayStar Aluminum Floating Dock w/ Resin Top

🛠️ Product Overview

The PlayStar Aluminum Floating Dock offers the ultimate combination of strength, light weight, and adaptability—perfect for deep water, muddy bottoms, or fluctuating water levels. Built with a tempered aluminum alloy frame and topped with a durable resin surface, this dock is engineered to self-adjust with seasonal water level changes, providing stable performance and lasting durability in all conditions.

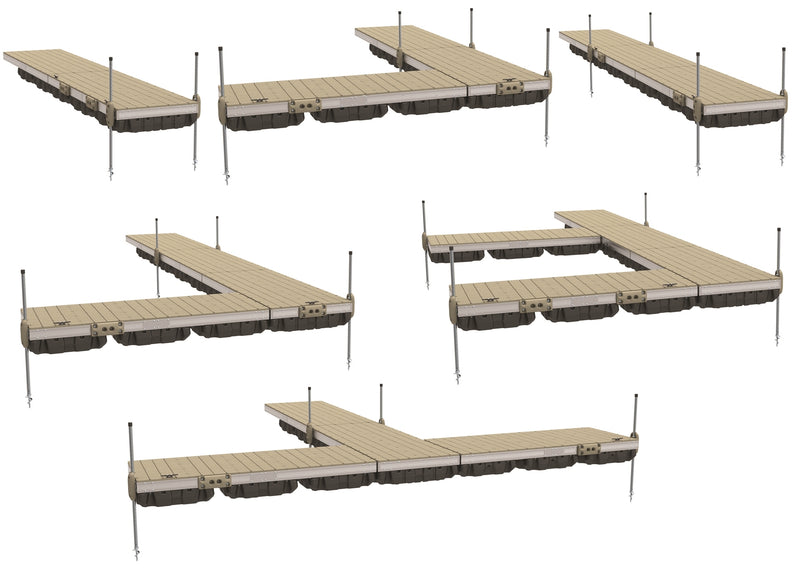

Each 4' x 10' section weighs less than 200 lbs, yet delivers 1,500 lbs of load capacity. The modular floating design allows you to connect multiple sections for custom layouts, from straight runs to “L” or “T” shapes. The included marine-grade floats provide exceptional buoyancy, ensuring a smooth, stable platform for boating, swimming, or relaxing by the water.

Whether you choose to build it yourself or opt for the pre-built version, the Aluminum Floating Dock combines performance, flexibility, and easy installation—all backed by PlayStar’s 15-Year Manufacturer Warranty.

⭐ Key Features

• Tempered aluminum alloy frame for maximum strength and corrosion resistance

• Floating design self-adjusts to changing water levels

• Durable resin top provides a slip-resistant, cool, and maintenance-free surface

• Lightweight modular construction — each section under 200 lbs

• Marine-grade HDPE floats provide superior buoyancy and stability

• Supports over 1,500 lbs per section

• Ideal for mud bottoms, deep water, and hard-to-reach shorelines

• Expandable design — connect sections for custom dock configurations

• All hardware and float mounting components included

• 15-Year Manufacturer Warranty for long-lasting peace of mind

⚙️ Specifications

• Model Numbers: KT 15053 (Build It Yourself), PS 25053 (Pre-Built)

• Dimensions: 4 ft x 10 ft per section

• Frame Material: Tempered aluminum alloy

• Decking Material: Resin dock top (PS 1320)

• Float Material: Marine-grade HDPE (PS 1155)

• Section Weight: <200 lbs total

• Weight Capacity: 1,500 lbs per section

• Connection Type: Commercial-grade hinge kit (PS 1070)

• Float Buoyancy: 500 lbs per float

• Recommended Dock Pipe: Purchased separately; cost approx. $25

• Warranty: 15-Year Manufacturer Warranty

💪 Why Choose the PlayStar Aluminum Floating Dock?

• Effortless Water-Level Adjustment: Floats rise and fall with the water for year-round stability.

• Lightweight, Heavy-Duty Construction: Aluminum alloy frame offers industry-leading strength-to-weight ratio.

• Maintenance-Free Decking: Resin top stays cool, resists fading, and eliminates splinters or warping.

• Superior Buoyancy: Each HDPE float provides 500 lbs of support and installs easily with included hardware.

• Easy Customization: Add sections to build any layout—perfect for waterfront homes, marinas, or resorts.

• Eco-Friendly & Durable: 100% Virgin HDPE floats are safe for the environment and freeze/thaw stable.

• Quick Assembly: All parts and instructions included for hassle-free setup.

• Peace of Mind: Supported by PlayStar’s trusted 15-Year Warranty.

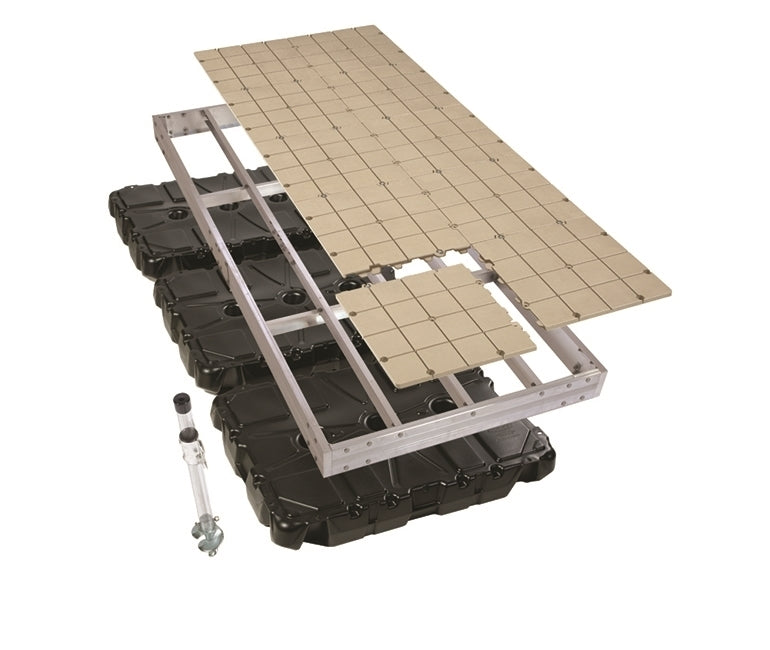

📦 What’s Included

• Aluminum Dock Frame Kit (PS 1505)

• Resin Dock Top (PS 1320)

• Marine Dock Float (PS 1155)

• Commercial Grade Pipe Sleeve (PS 1080)

• Commercial Grade Dock Auger (PS 1100)

• Commercial Grade Hinge Kit (PS 1070)

• Pipe Safety Caps (PS 1193)

• All Mounting Hardware and Fasteners

Additional Materials (Purchased Separately):

• Dock Pipe (length determined by water depth; approx. $25)

🧰 Tools Required (for DIY Assembly)

• Safety Glasses & Gloves

• Measuring Tape

• Pencil

• Saw Horses (not needed for pre-built)

• 7/16", 3/8", 9/16" Socket & Ratchet

• Matching Wrenches

• Drill with 1/8", 1/4", 3/8" Bits (may not be needed for pre-built)

• #2 Phillips Screwdriver

• Carpenter’s Square (not needed for pre-built)

🛡️ Warranty & Support

Engineered for strength and designed for simplicity, the PlayStar Aluminum Floating Dock provides dependable performance for years to come. The rust-proof aluminum frame, marine-grade floats, and resin decking ensure worry-free enjoyment season after season.

Protected by a 15-Year Manufacturer Warranty, this floating dock delivers industry-leading reliability, safety, and craftsmanship for your waterfront lifestyle.
